BG Collar Button Setter Dies, Size B1020
***Requires hand tool post & base or BG hand press sold separately***
- BG Hand Press
- Hand Tool Base & Post
The ‘BG Standard’ spec fits the BG Hand Presses and BG Setter Post & Base. The 'West Coast' spec fits most non-Buckleguy machines and tools. For spec and measurement info please see product image or description below.

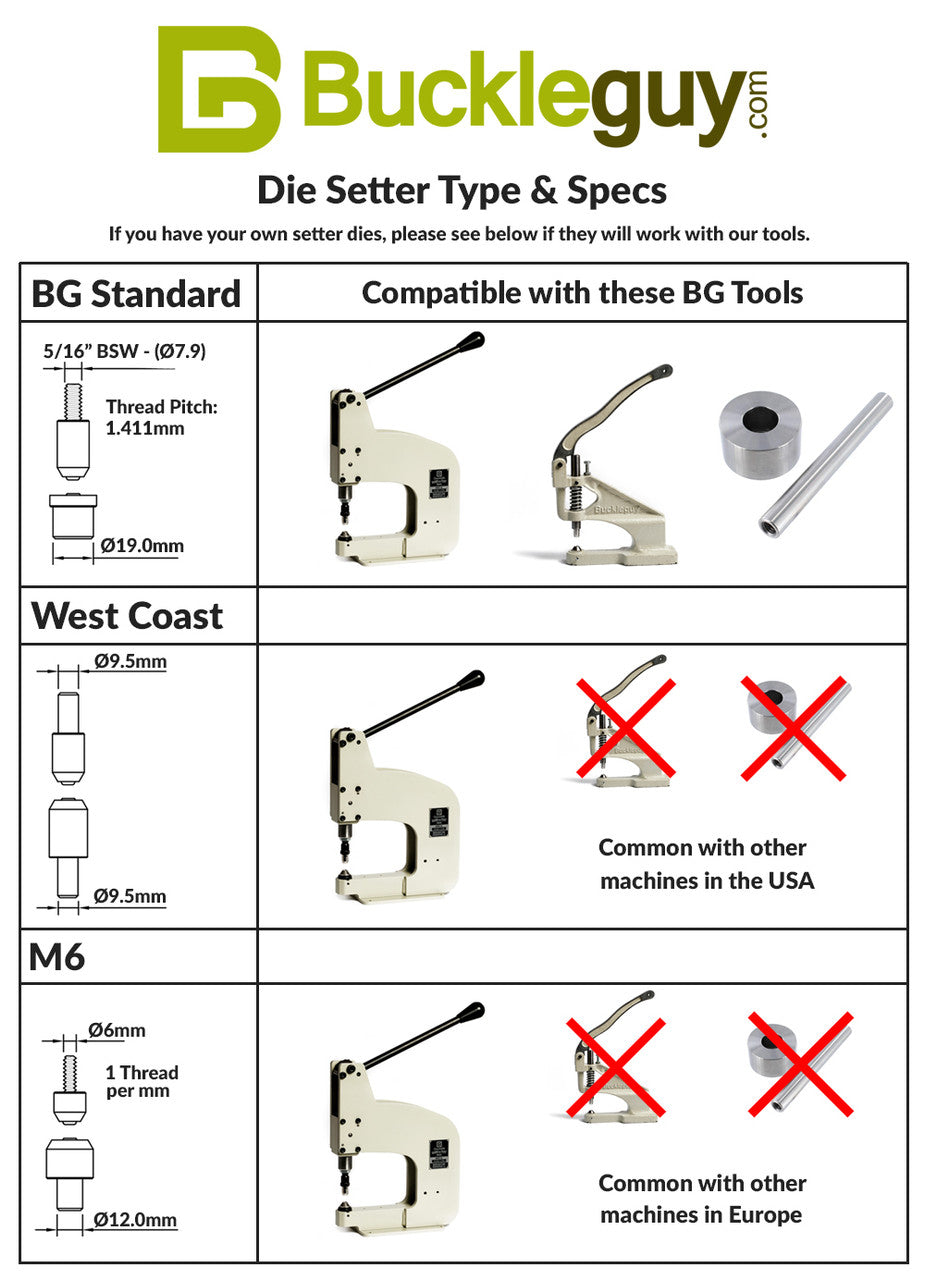

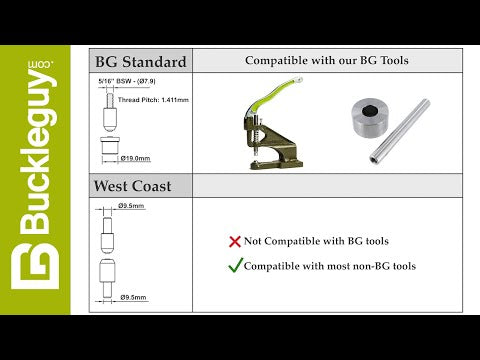

Die Size Specifications (Attachment Type). Image chart also above:
- BG Standard (Fits BG tools and machines)
- Diameter of upper die (threaded): 7.9mm (1.411mm thread pitch)
- Diameter of bottom die (not threaded): 18.9mm
- West Coast (Does not fit BG tools. But is used on most non-BG tools)
- Diameter of upper die (not threaded): 9.5mm
- Diameter of bottom die (not threaded): 9.5mm
Material: Stainless Steel
